Technical information

Basic functions of the RG series automatic transfer panels

• The installed intelligent multi-position choke servo drive for petrol generators, instead of the conventional step-wise two-position electromagnet control, ensures high operational reliability of the start and running of the petrol generator even at low temperatures, including short repeated starts during brief public grid outages.
• When out-of-tolerance public grid voltage occurs, the RG control unit automatically starts the generator and, by automatically switching the backed-up circuit to the generator, protects important technology even when permanent overvoltage of the public grid occurs from its sudden unloading.
• The automatic start units are fitted with contactors (in AC3) with mutual 1x mechanical and 2x electrical interlocking, thereby completely preventing feeding power back into the public grid.
• The backup source tests itself automatically according to the set parameters and the test results are recorded in the control unit's internal memory.
• An electronic record (log) of technological states and faults allows quick checking of operation, including diagnostics of the backup source.
• The control system prevents damage to the generator when its output is exceeded.
• We assemble ATS RG10/30 series control panels according to the individual requirements of the user.

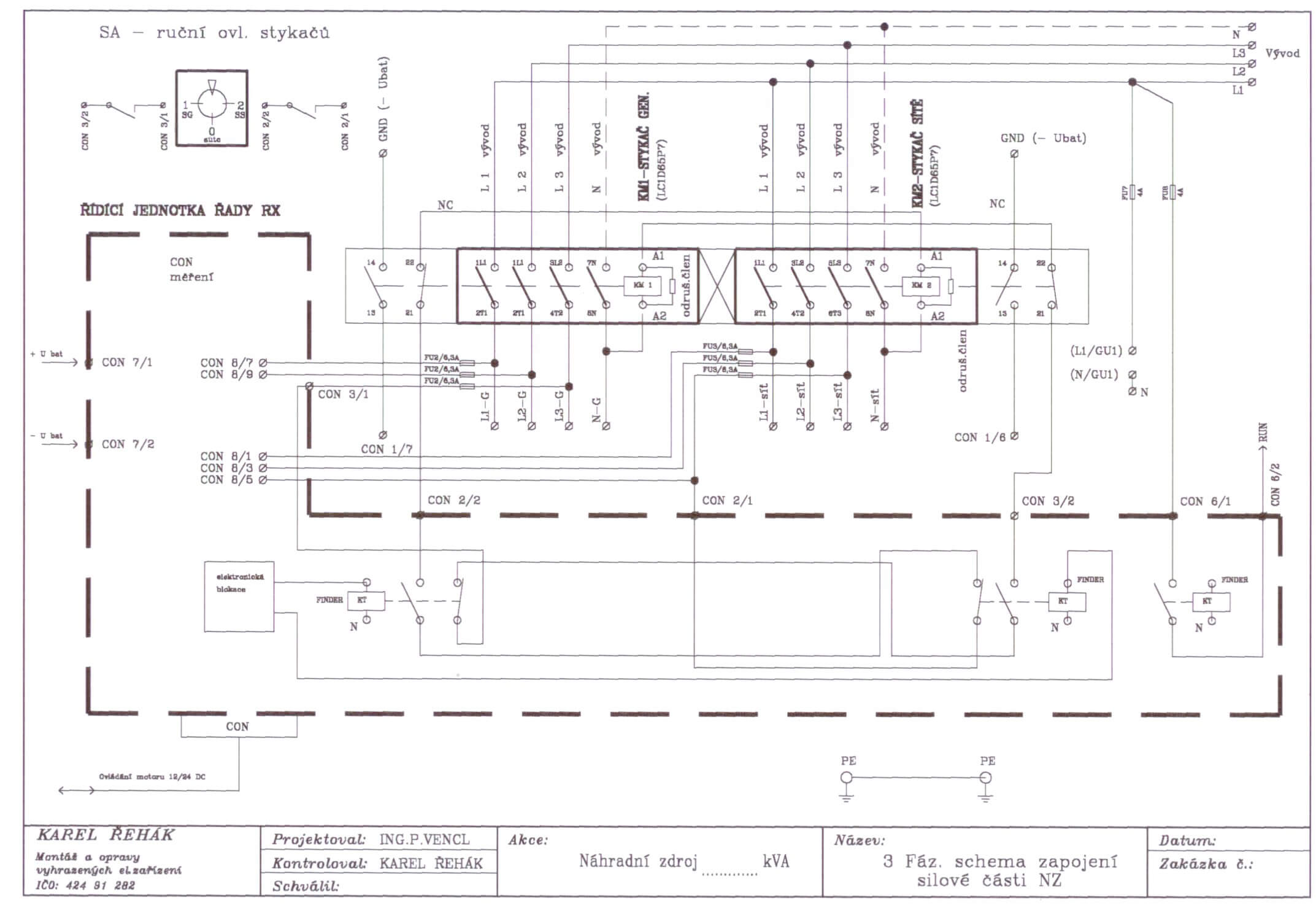

Standard equipment of the RG series control unit

• ROGENA® RG/RX series microprocessor control module (compact generator start automation block)
• Power contactors in AC 3 design with 2x electrical and 1x mechanical mutual interlocking
• Control and monitoring console with a two-line display in English
• TOTAL STOP with locking (per ČSN 33 2000⁠-⁠5⁠-⁠537, ČSN EN 418)
• Automatic starter battery charger
• Extended equipment
• External CENTRAL STOP
• Analogue current measurement in the backed-up branch
• Option of remote control of the start and running of the backup generator
• External control and monitoring console in English (RS 232 ⁠–⁠ up to 20m)
• Option to control the fuel valve for petrol generators
• Signalling of exceeding the permitted load in the backed-up branch
• Protected output for controlling HVAC
• 30mA residual current device
• Other possible panel equipment according to the user's requirements
• Option of remote reconfiguration of the GSM module
• SMS messages about changes in the technological state of the backup source
• Checking the current technological state of the backup source
• Remote control of the backup generator via SMS/internet
• Option of remote control incl. monitoring ⁠–⁠ GSM gateway
